The Metal Shark 33 Relentless is a proven twin-engine center console vessel that has been selected for use by the United States Navy’s Foreign Military Sales (FMS) program and is currently deployed worldwide. Thanks to its high performance Michael Peters hull design, the 33 Relentless offers exceptional performance in a variety of conditions. The vessel is ideally suited for use in a wide array of applications where speed, maneuverability, and offshore capability are required, including open water patrol, vessel interdiction, and shore-based insertion and extraction missions. The 33 Relentless has been designed as a crew-friendly boat, and as such has been thoroughly optimized for movement, visibility, protection, and overall functionality.

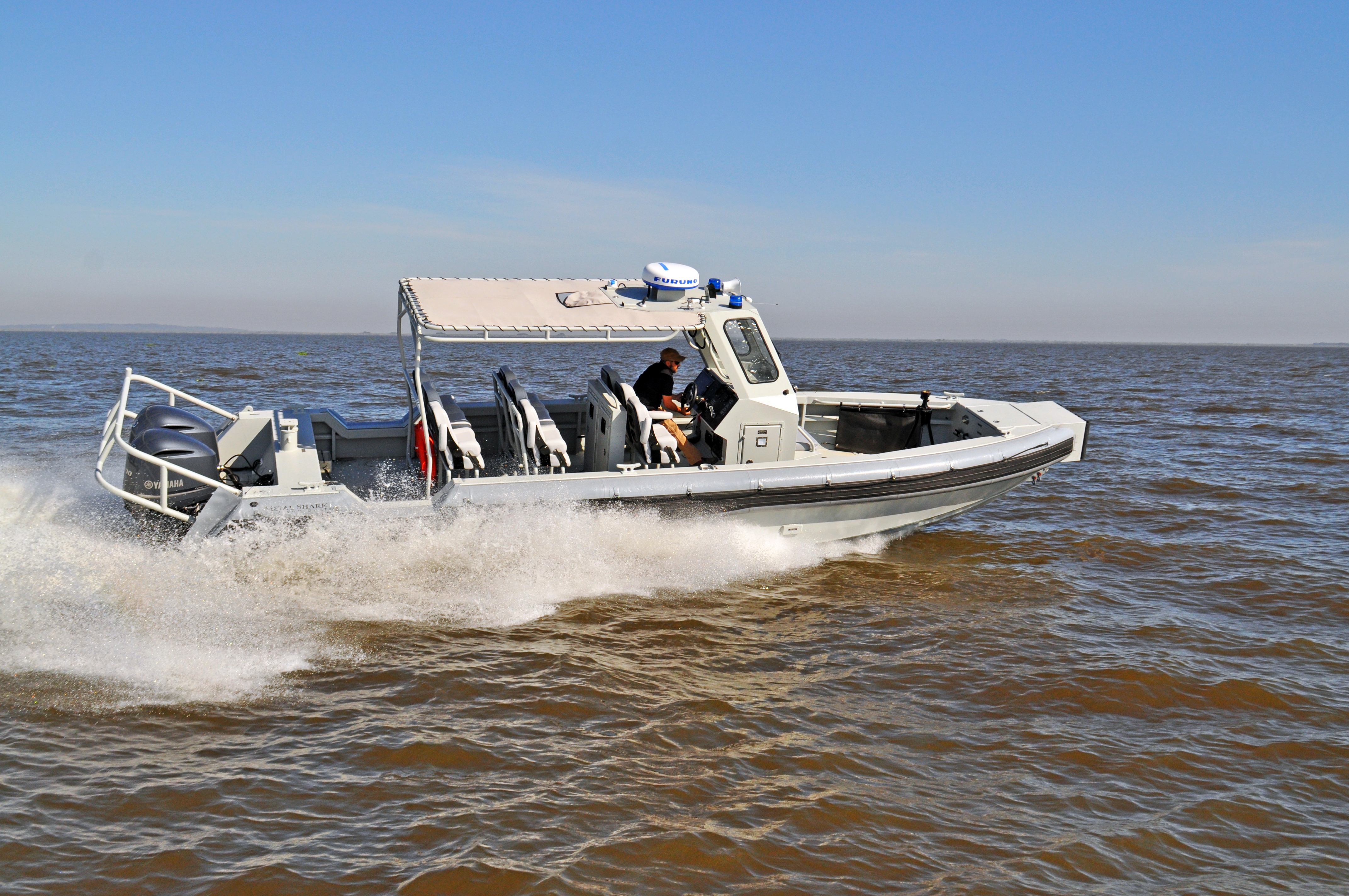

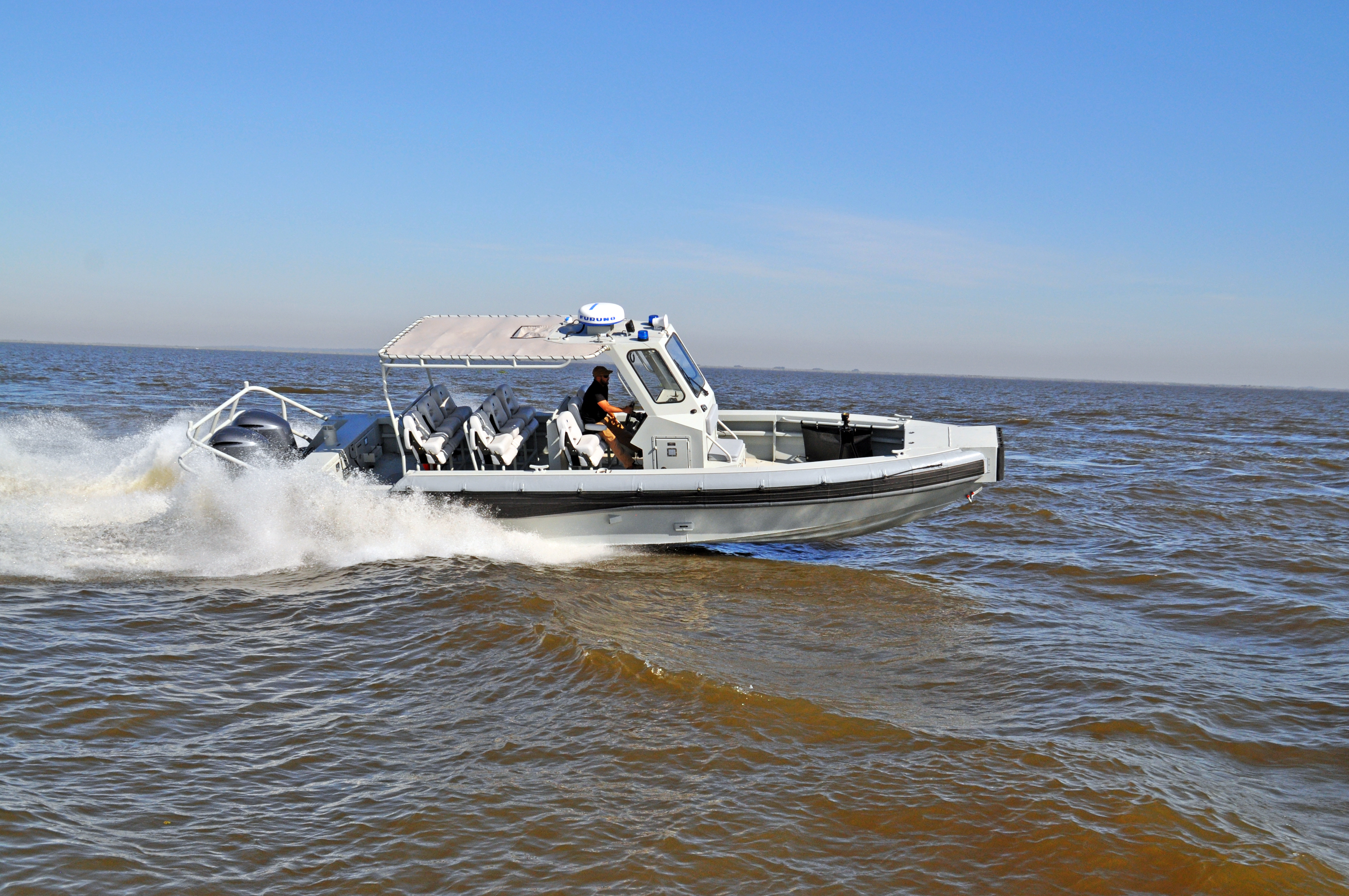

Metal Shark 33 Relentless U.S. Navy Interceptor

Deck Features: In standard configuration, the Metal Shark 33’ Relentless features seating for two crew, sheltered by a hard T-top with an extending/retracting overhead canopy. The T-top provides over 80” of headroom with weather protection curtains that can be added to further shelter crew and passengers from the elements. The folding T-top is also easily stowed and secured for trailering and/or hoisting by two crew in less than three minutes. Wide, 20” walkways enable easy crew movement fore and aft. The oversized bow door allows easy transit on/off the vessel, while port and starboard dive reliefs allow easy access to the water. (Vessel shown here equipped with additional crew seating as specified by U.S. Navy FMS.)


Metal Shark 33 Relentless Center Console Interceptor

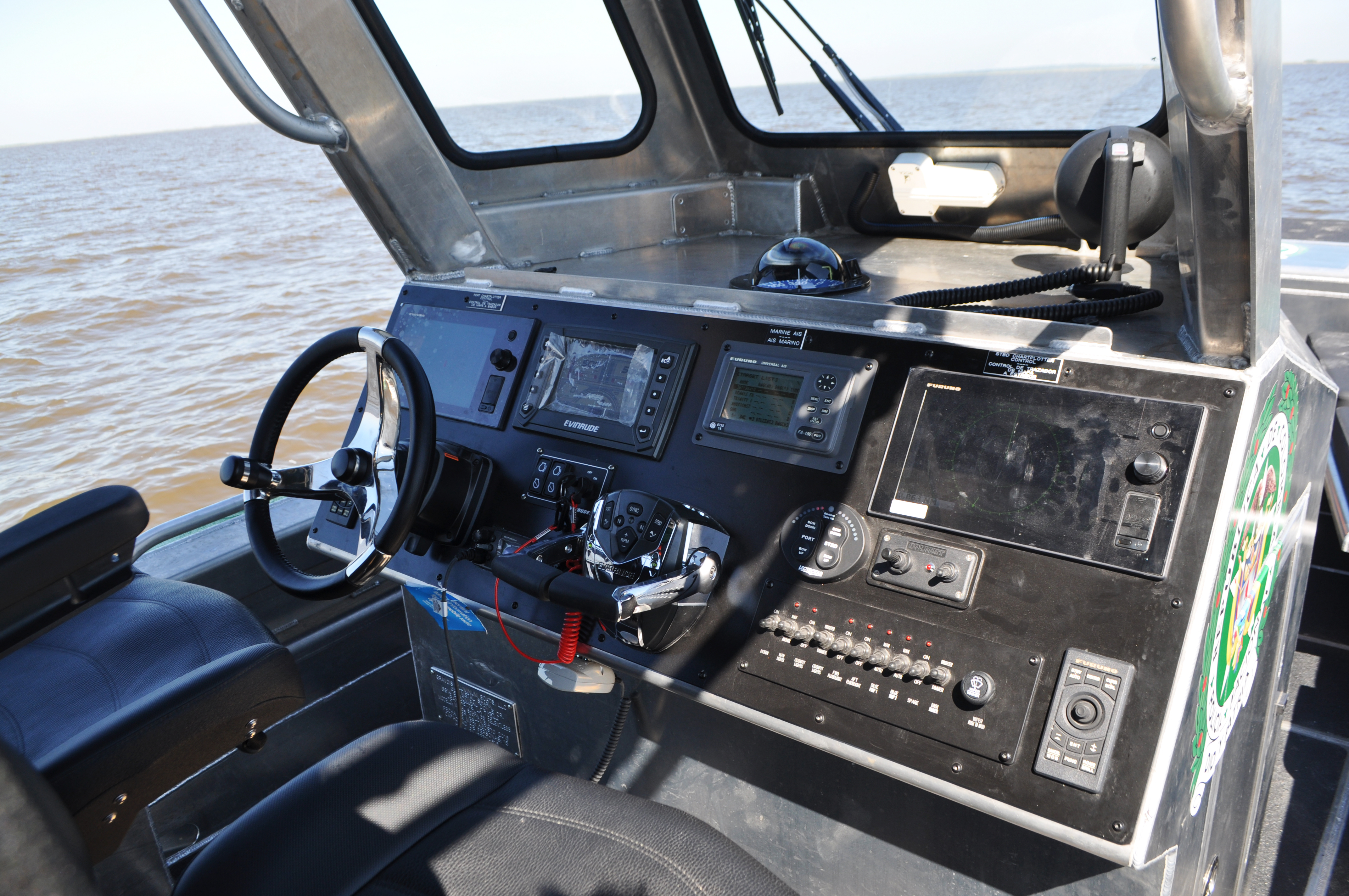

Helm: The 33 Relentless console features an ergonomic layout designed to facilitate operation. Controls and navigation equipment have all been placed within easy reach the coxswain and navigator. The throttles have been situated so that they fall easily in hand without the coxswain having to lean out of the seat. The crew has been afforded outstanding visibility courtesy of a large, three-panel Diamond Seaglaze windshield with self-parking wiper.

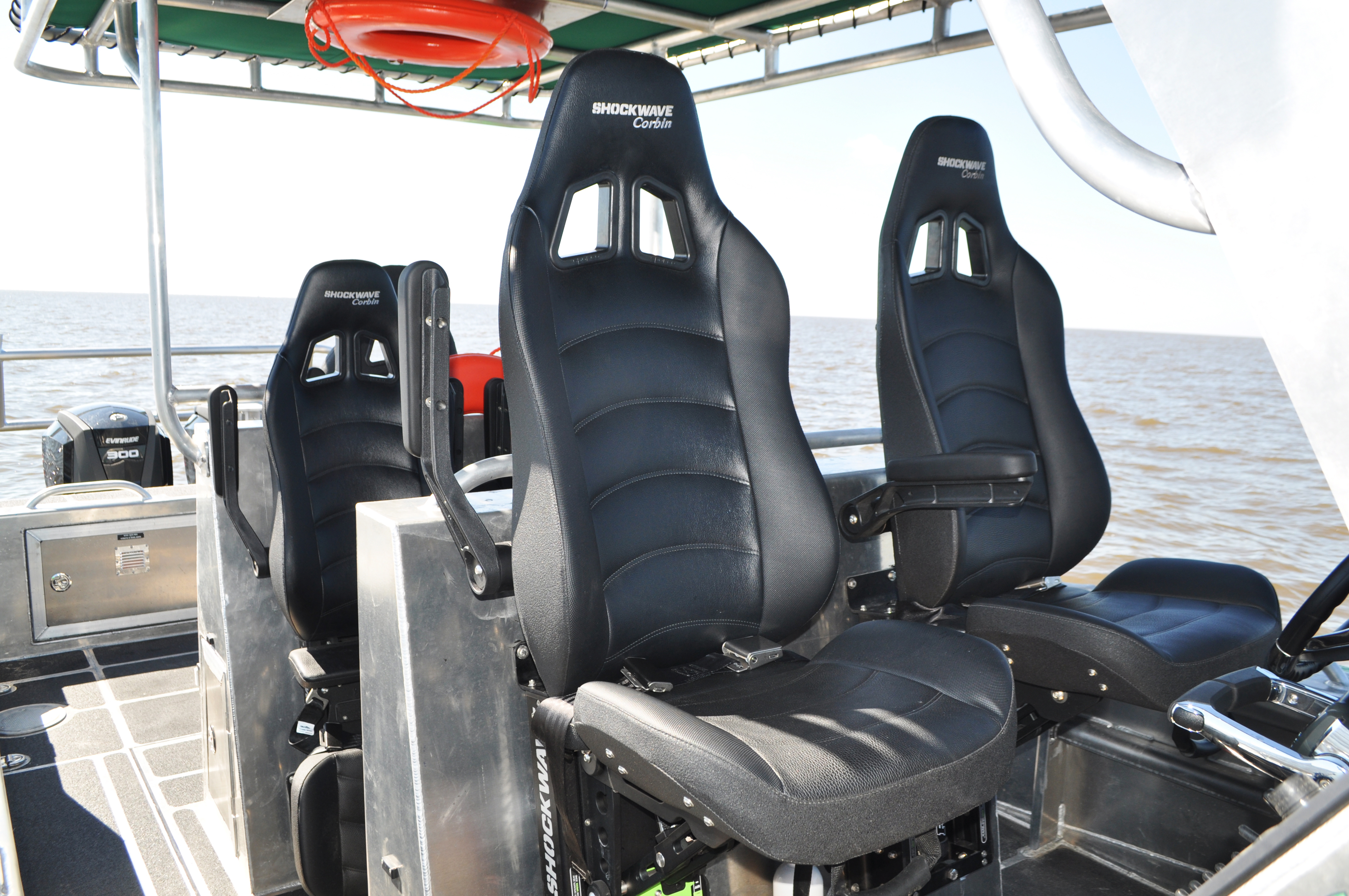

Metal Shark 33 Relentless Seating

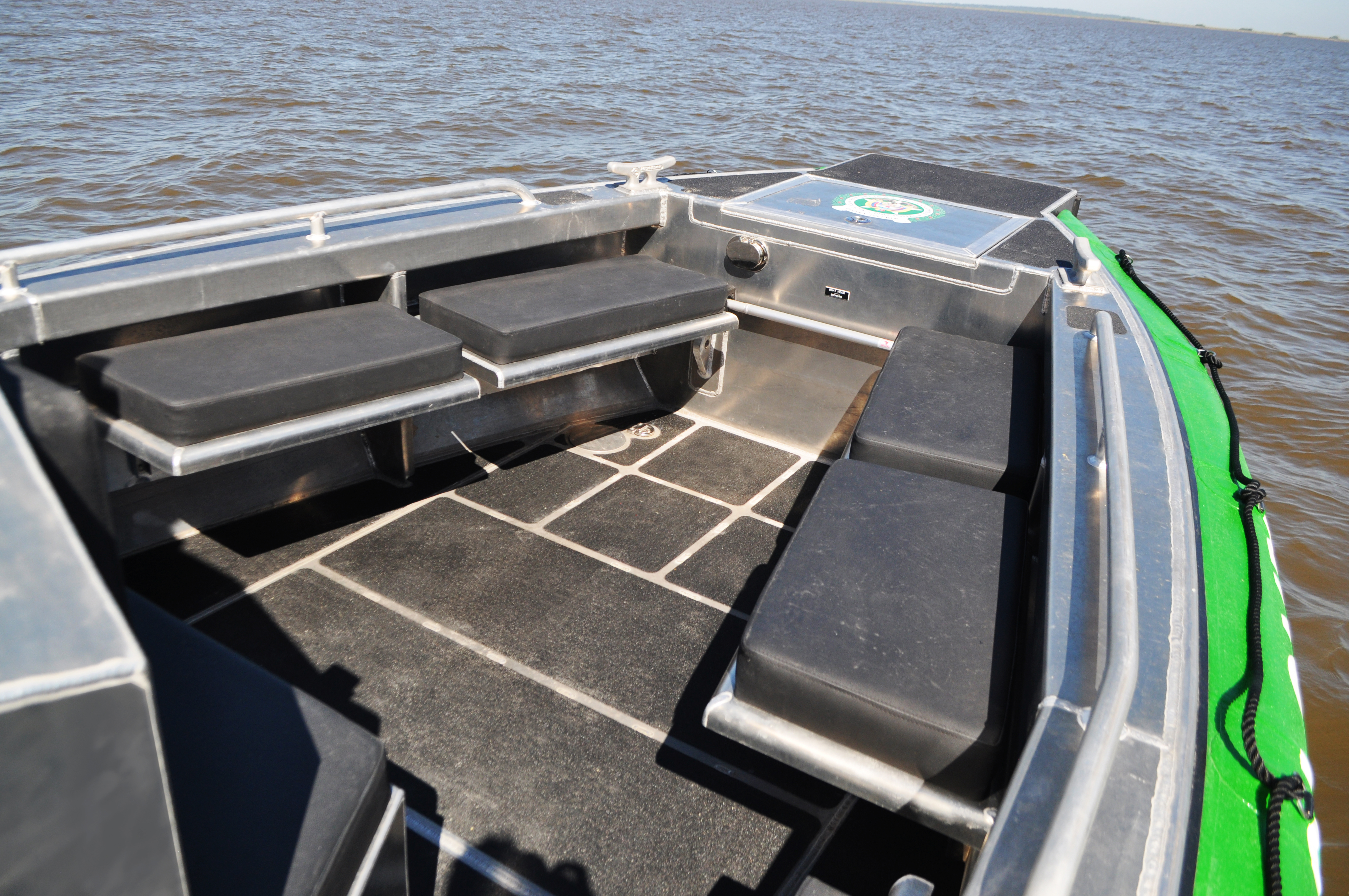

Seating: Like all Metal Sharks, the 33 Relentless can be fully customized to meet virtually any requirement, whether military, law enforcement, commercial, or even recreational use. The vessel shown here has been equipped for maximum crew seating, but may be configured in a more conventional manner to significantly increase cockpit space. Available seating options range from leaning post seats with storage, standup seats with drop-out bolsters, or military-grade shock-mitigating seating.


Metal Shark 33 Relentless Console Design

Console & Integrated Hard Top: Welded aluminum console with integrated folding T-top that is easily stowed and secured for trailering and/or hoisting by two crew in less than three minutes.

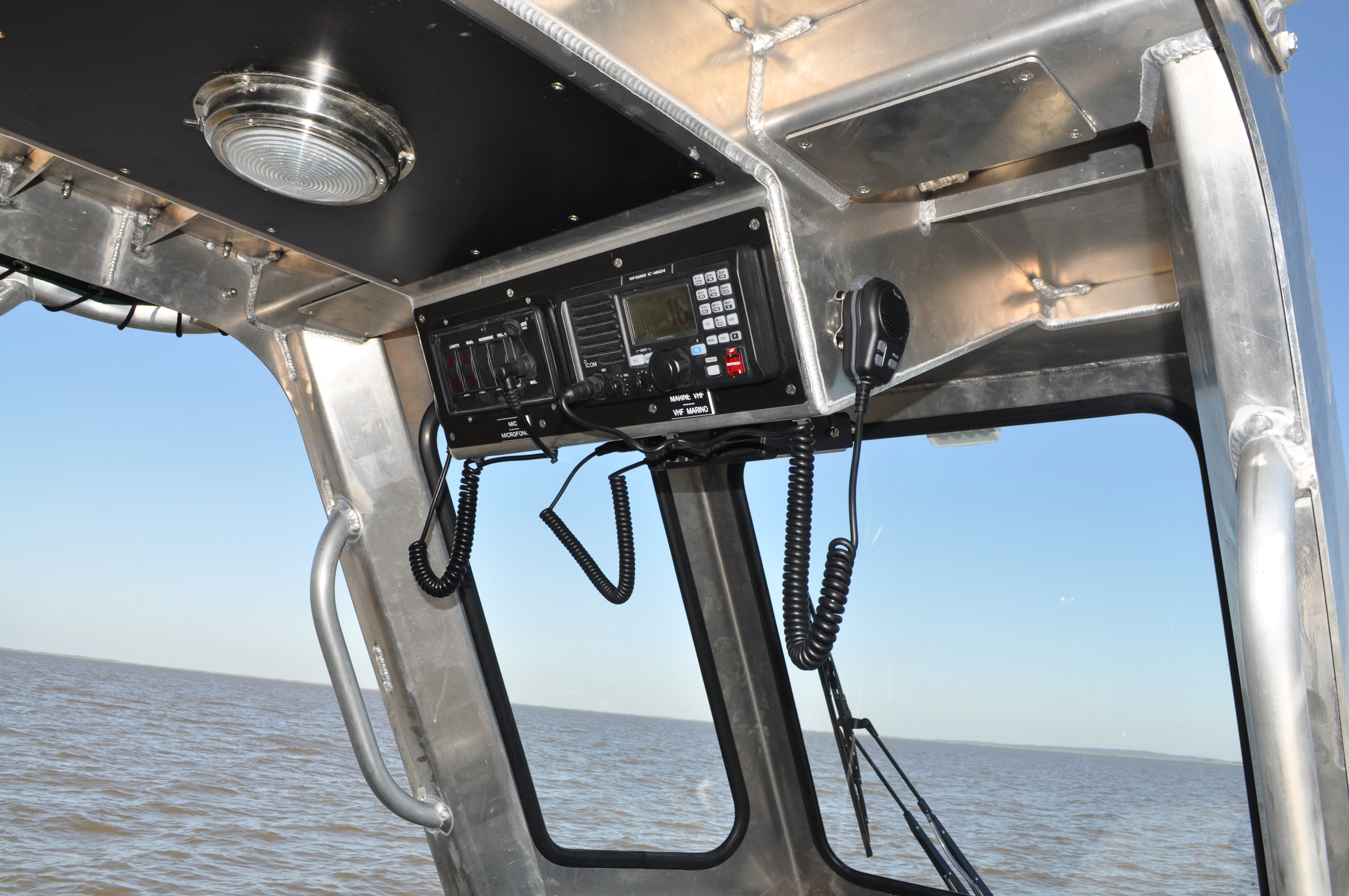

Metal Shark 33 Relentless Overhead Electroncis

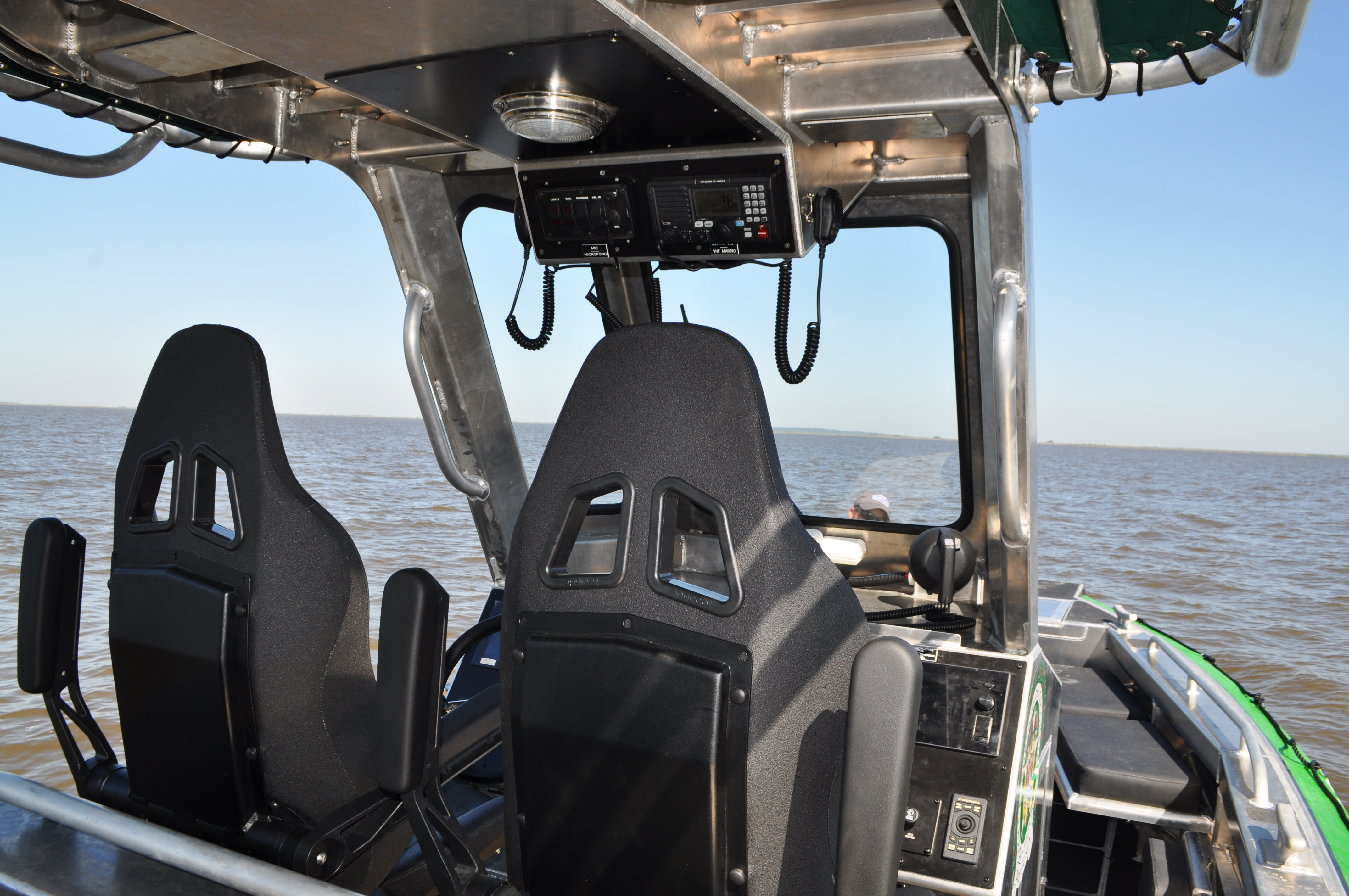

Electronics Pod: Communications systems, spotlight controller, and auxiliary switches are mounted in the overhead electronics pod with easy maintenance access provided. White/red overhead LED lighting is standard.


Metal Shark 33 Relentless High Performance CC Twin Yamaha

Engines: With twin outboard power, the 33 Relentless has been designed and built to perform reliably in a wide range of environments with a minimum of maintenance. Shown here are the welded, heavy-duty engine protection bar and integrated aft towing bit.

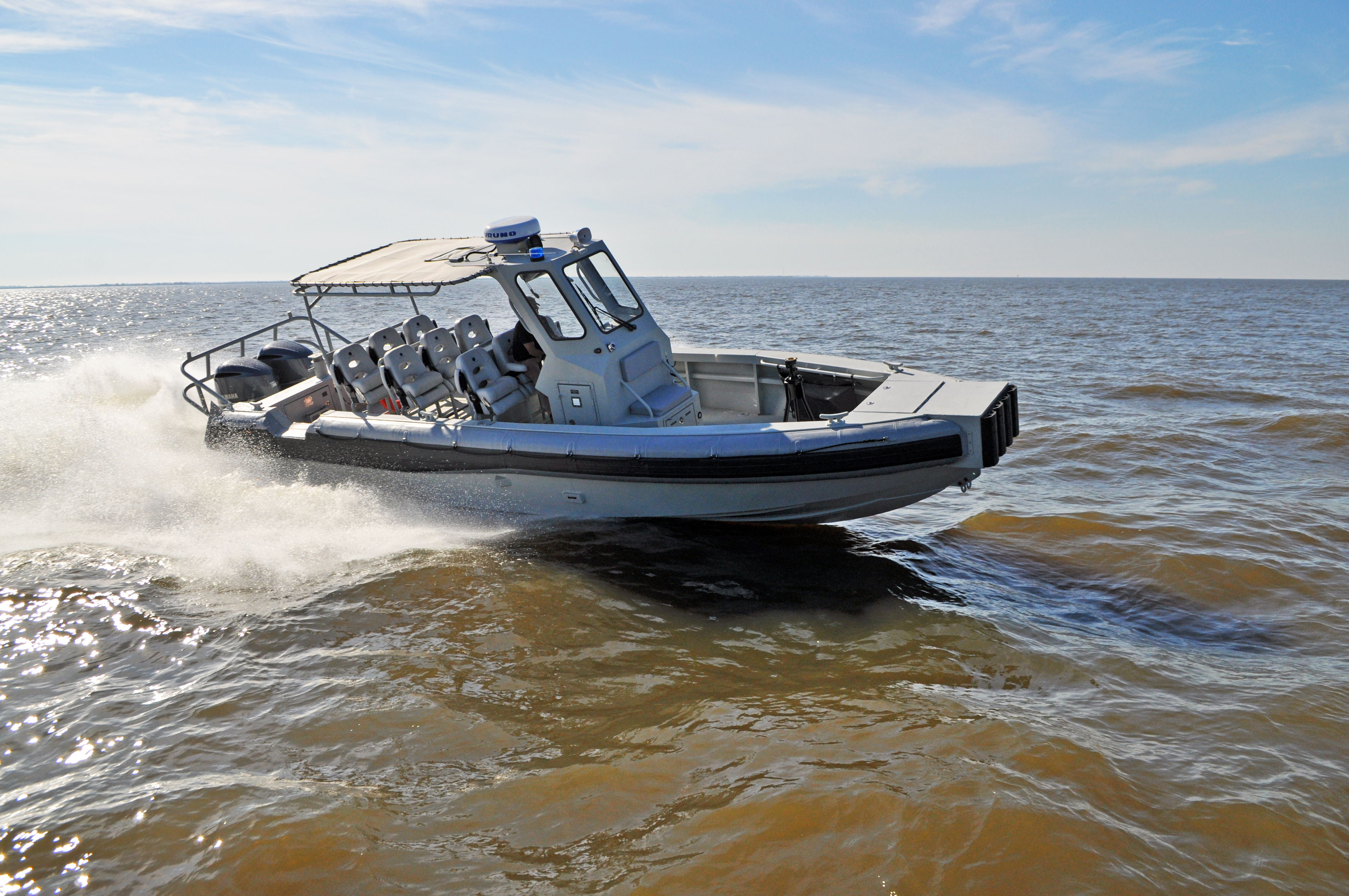

Metal Shark 33 Relentless High Performance Center Console


See the Metal Shark 33 Relentless in this video.


Typical Vessel Specifications:

LOA:    33′

Beam: 10′

Draft: 26″

Fuel: 200 Gallons


Key Features:

Bilge Pumps:Dual, auto/manual

Canopy – Extending/Retracting

Construction: 5086 marine grade welded aluminum

Console: Welded aluminum with three window panels and integrated folding hard top

Dash: Oversized, with ample room for controls and electronics

Deck: Self-bailing with 6” scuppers

Deck Hardware: Bow bit, stern towing bit and (6) 10” welded cleats

Dive Reliefs: Port & starboard

Door, Bow

Electronics Mounting Surface Pod: Overhead integrated

Fire Extinguishers: (2)

Fuel/Water Separator, Racor

Grab Rails – forward, console, and aft

Hull: High performance Michael Peters design

Life ring with mount

Lighting, Console:LED work lights (2) and overhead red/white dome lighting

Lighting, Deck: Low-level LED deck lighting

Lighting, Navigation & Running Lights

Seating: Leaning post helm seat with integrated storage

Seat, Forward Console

Storage Lockers: Bow/anchor and stern lockers

Storage Lockers, Console

Zinc Anode, Hull


Collar and Fendering System:

Heavy Duty sheath-wrapped foam WING collar, custom color choices & UV coating protection

Bolt rope style attachment system

Anti-fouling paint preparation behind collar
