20 Resolute

Typical Specifications

LOA: 20’
BOA: 8’

For detailed specifications, contact us today.

Metal Shark’s 20 Resolute is a durable utility skiff designed and built to withstand the rigors of extreme commercial use. It is a highly adaptable platform that can be specially tailored to suit a wide range of missions. Metal Shark can produce skiffs and barges in aluminum and steel up to 250’.

Hull Design

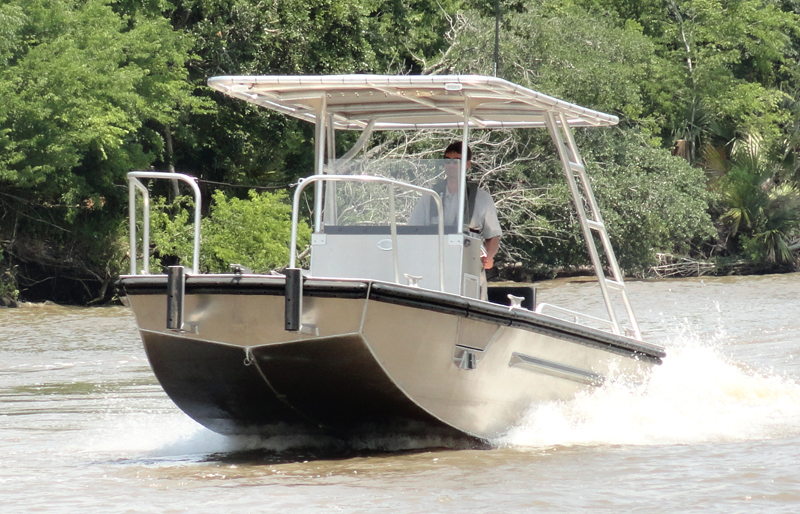

Metal Shark’s Resolute-class utility skiffs benefit from the same stout construction as their larger, ocean-going siblings. Each Resolute hull is radically overbuilt. They are thoroughly welded, rivet-free, and made of durable corrosion-resistant 5086 aluminum alloy. Resolute skiffs may be configured to accommodate a wide range of single and twin-engine propulsion choices making them popular for a wide range of law enforcement, fire rescue, and commercial applications. The 20 Resolute features a shallow hull design with 8” draft allowing for economical low speed operation.

Deck Layout

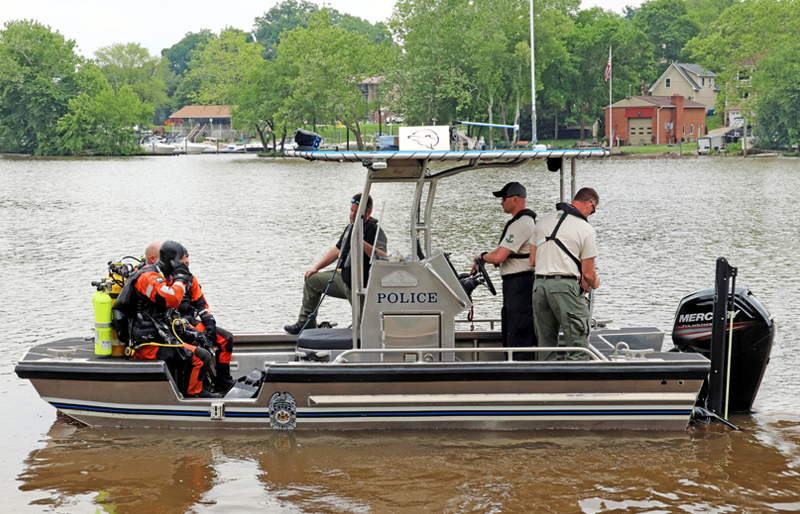

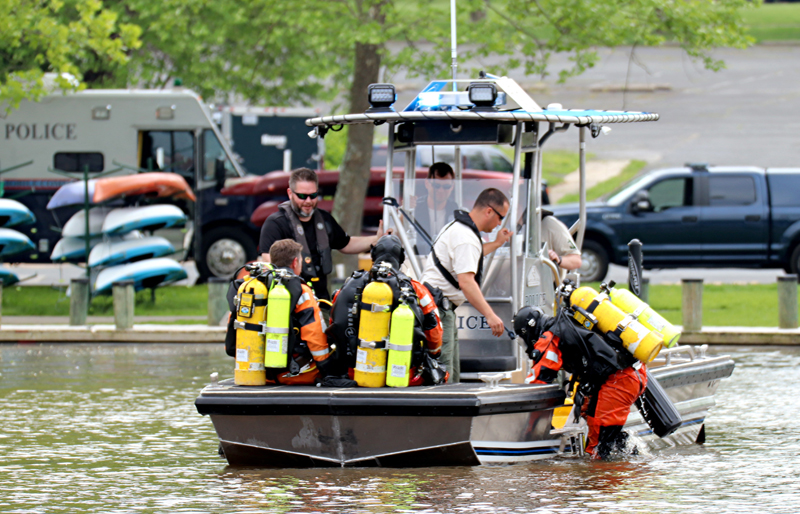

The 20 Resolute is a proven utility platform typically configured with a completely flat working deck. Forward and aft utility platforms are available, as are custom dive doors, tie-downs, forward and aft towing bits, pusher knees, various fendering systems, and other mission-specific features. The vessel shown here was built for the Fairfax County (VA) PD’s Marine Patrol unit and features a forward dive door and custom center console with oversized T-top.

Console & Helm

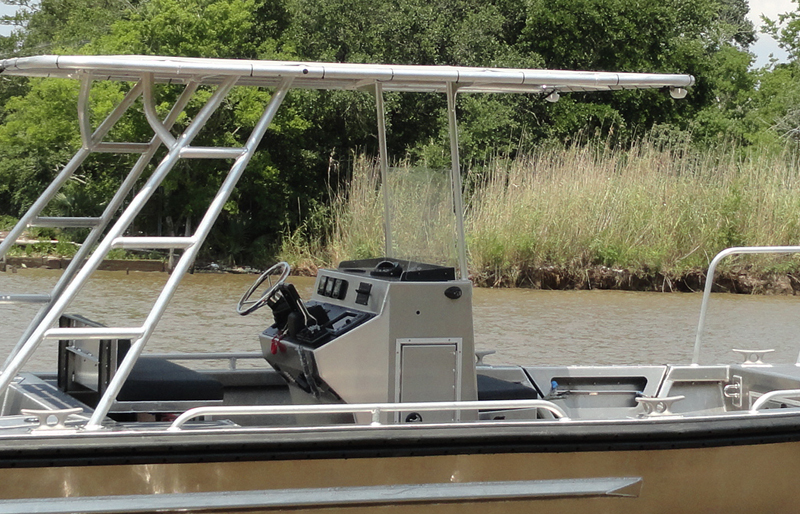

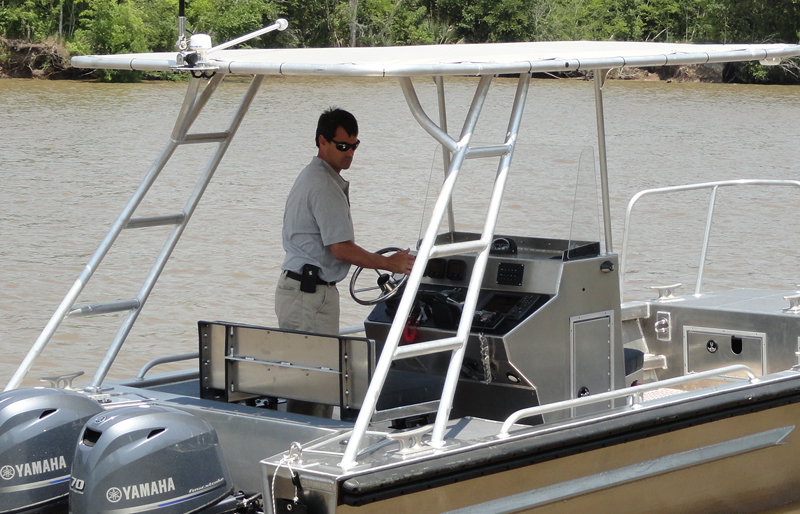

The 20 Resolute is shown here in a center console configuration. For other uses, the 20 Resolute may be configured as a side console, dual console, or tiller steer vessel. Numerous options for custom tops (including the oversized arch top shown here) and seating are available.

For more information about this or any other Metal Shark model, contact us today.
